Wheel Mounted Crushing Plants

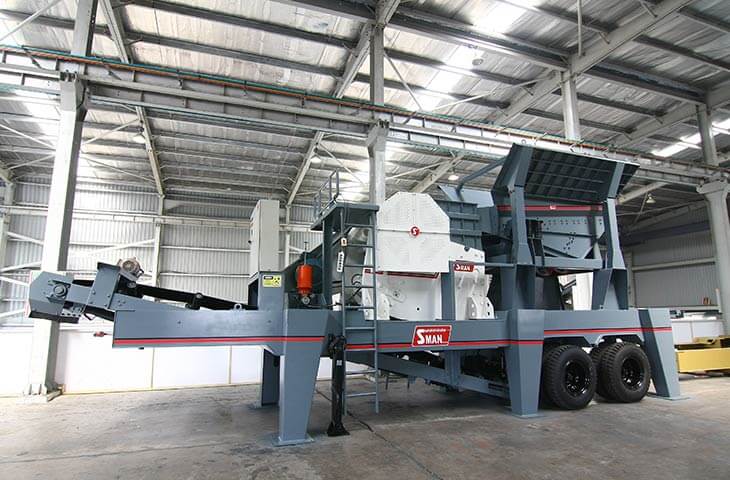

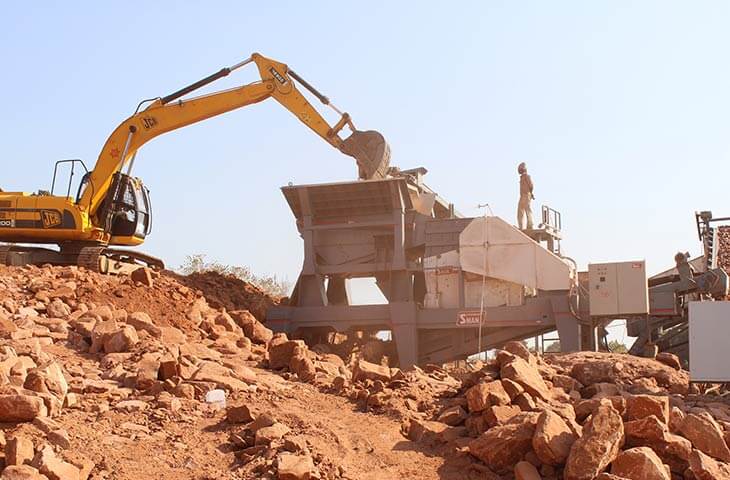

SMAN PRIMARY JAW STATIONS The SMAN Primary Jaw station utilizes a heavy-duty Jaw Crusher capable of handling large feed sizes, possessing an appropriate angle for the crushing cavity resulting in a smooth material flow & high crushing action, material is fed to the crusher via a vibratory feeder that is fitted with a grizzly section & a by-pass chute that directs the intermediate and fine fractions to the discharge conveyor located beneath the crusher. The electrical panel is mounted on to the skid enabling easy maintenance access. The heavy duty steel fabricated skid with the optional mobile attachment reduces the need for building heavy

concrete foundations & ensures quick installation & dismantling of the equipments for inter site movements. To ensure maximum operator safety and access, the operators platform has handrails and access ladder from the ground. Safety guards are fitted to the main drive and around the crushers flywheels All of these features are aimed at producing high quality aggregates, yet the simple & effective design contains many advanced features that give versatility, mobility & ease of operation.

SMAN PRIMARY JAW STATIONS are most suitable for Granite/Quartzite, Basalt, Sandstone, Iron Ore & Other tough and abrasive materials

Salient Features

  • Unique modular type Jaw Crusher body offering high fatigue strength
  • Larger size bearings in jaw crusherfor excellent durability
  • Heavy steel skid including feeder &discharge conveyor for quick installation
  • Large feed opening with a wide CSS rangeoffering G.S.B. & Secondary feed outputs
  • Well equipped electrical panel
  • Auto lubrication
  • Optional mobile attachment forquick inter site movement
  • Only Jaw Crusher without skid andaccessories also available
